Description
Innovacera Ceramic Oxygen Sensor Heater is suitable for use in Bosch, Denso, Delphi, NTK & NGK Oxygen Lambda Sensor, Oxygen sensors are designed to monitor the amount of oxygen that’s in the car’s exhaust stream, while ceramic heater plays an important role in the O2 sensor.
During heating, zirconia conducts oxygen ions, a characteristic that allows oxygen ions to flow from the high O2 concentration of air to the low O2 concentration on the exhaust side of the ceramic.

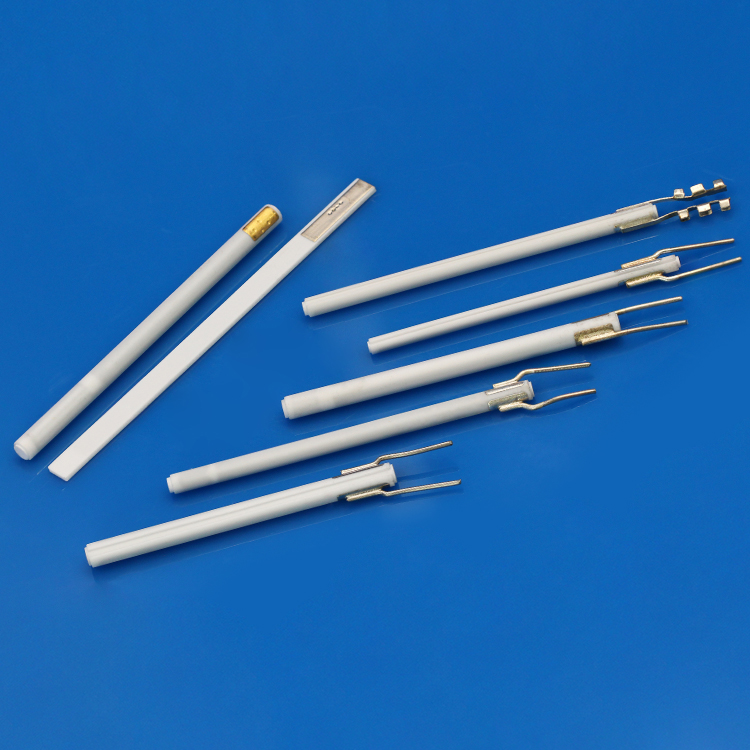

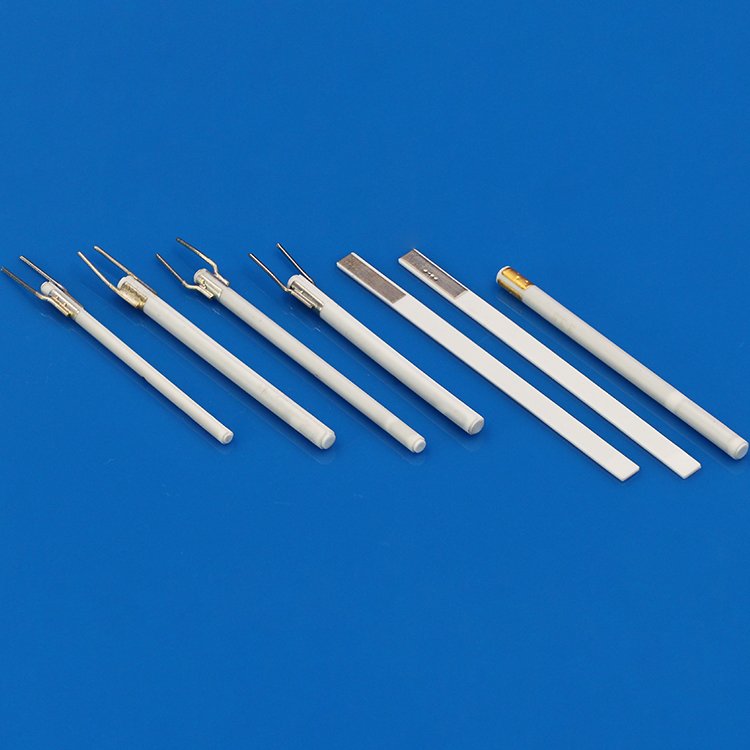

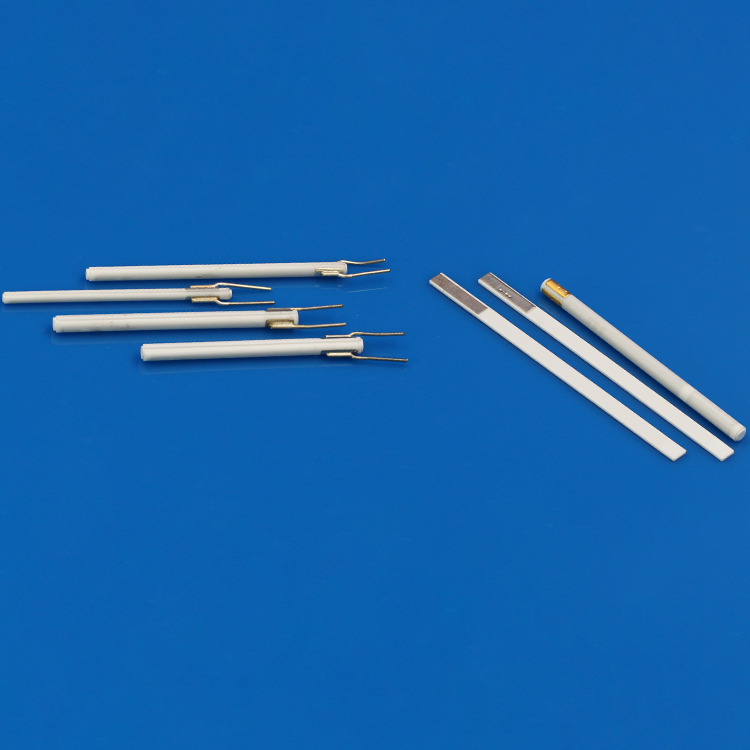

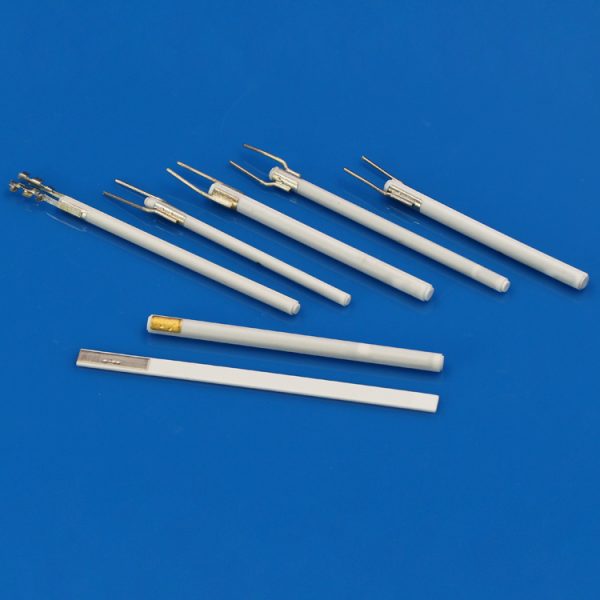

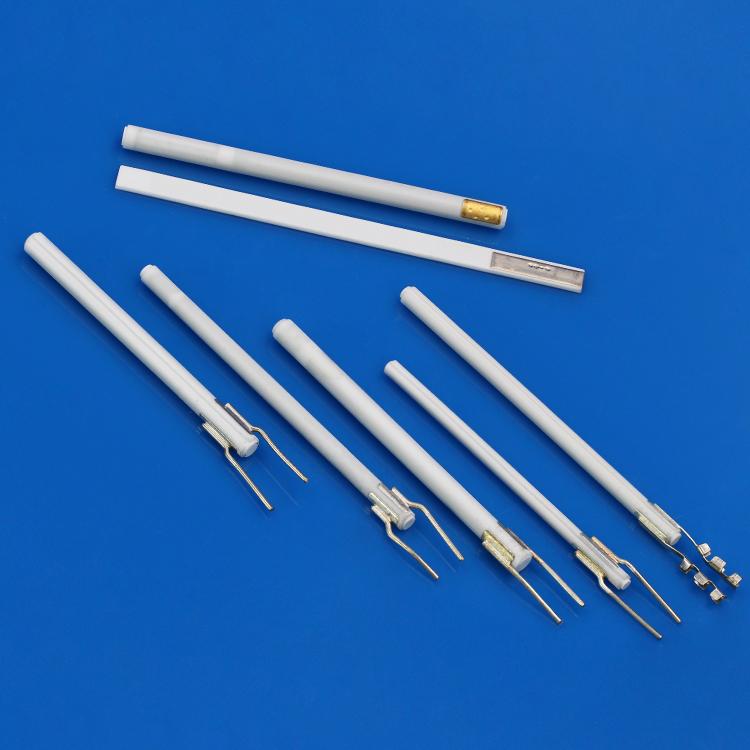

Innovacera produces ceramic heating rods and planar ceramic sensor elements. The rod shape is used for the thimble oxygen sensor, and the planar ceramic heater is used for the planar oxygen sensor.

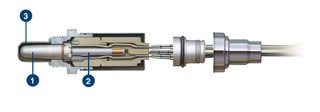

Thimble oxygen sensor cutaway:

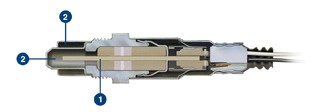

Planar oxygen sensor cutaway:
Innovacera ceramic heater applications:
1. Oxygen sensor
2. Motocycle oxygen sensor
3. Hot surface igniters (ignition of gas, oil, biomass, pellets)
4. Hot air generation
5. Tool heating
6. Melting, Welting, ordering, Hot air soldering
7. Heaters for chemical analysis and laboratory equipment (eg, min-furnaces, reactors)
8. Customer-specific heating solutions
| Model | Voltage | Resistance |
| X4225TB | 12-13V | 11.7-14.3Ω |
| X4429TAA | 12-13V | 4.3-5Ω |
| X4436TA | 12-13V | 5.4-6.6Ω |
| X4436TB | 12-13V | 2.7-3.3Ω |
| X5030TA | 12-13V | 3.6-4.4Ω |
| X5236TA | 12-13V | 3.5-4.5Ω |
| X5536TA | 12-13V | 4-5Ω |
| X5630TA | 12-13V | 3.5-4.5Ω |
| X5630TF | 12-13V | 3-3.8Ω |
| X5630TG | 12-13V | 5-5.8Ω |
| X5630TM | 12-13V | 12-13.8Ω |
| X5830TE | 12-13V | 5.22-6.38Ω |
| X4325TCA | 12-13V | 5.4-6.4Ω |
| X4736TC | 12-13V | 11.7-14.3Ω |
| X48525TA | 12-13V | 5.4-6.6Ω |
| X50255TB | 12-13V | 5.4-6.6Ω |
| X55530TA | 12-13V | 5.4-6.6Ω |
| X56295TG | 12-13V | 11.7-14.3Ω |
| X5630TOB | 12-13V | 5.4-6.6Ω |
| X5836JB | 12-13V | 3.1-3.9Ω |
| X5929TC | 12-13V | 3-3.5Ω |
| E5538TH | 12V | 1.2Ω-1.5Ω |
| X5930TDA | 12-13V | 2.93-3.57Ω |
| X5836JC | 12-13V | 3.1-3.9 |
| X37255TB | 12-13V | 2.4Ω±10% |
| X37255TC | 12-13V | 1.1Ω±0.15Ω |
| X43255TC | 12-13V | 1.1Ω±0.15Ω |
| X4736TD | 12-13V | 6.0Ω±0.6Ω |
| E61838TB | 220V | 1000Ω±100Ω |
| P7041NA | 24V | 23Ω-28Ω |
| X56295TA | 12-13V | 4-5Ω |
| X43255TH | 12-13V | 2.4Ω±0.24 |
| E61838TA | 220V | 750Ω±100Ω |
| E6038TZ | 220V | 558-682Ω |
