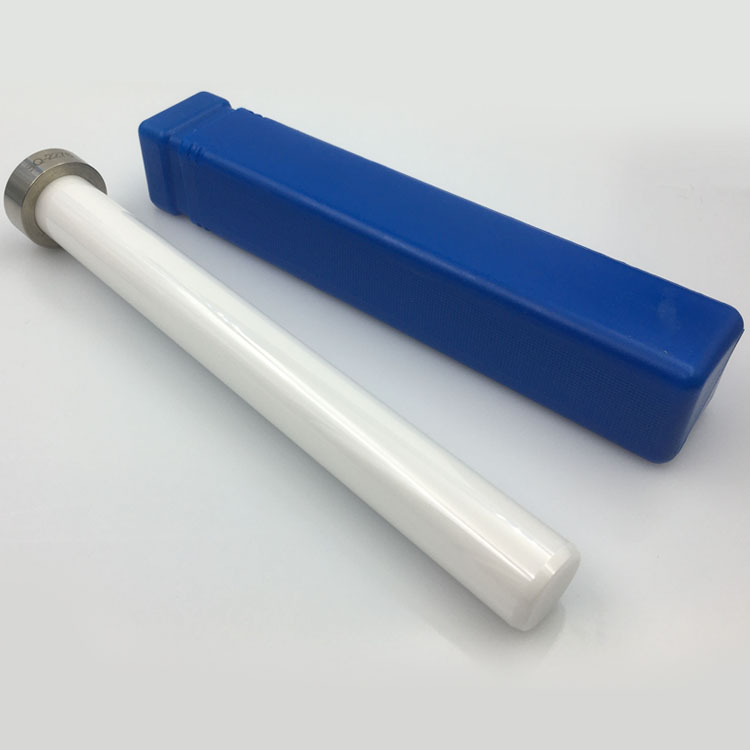

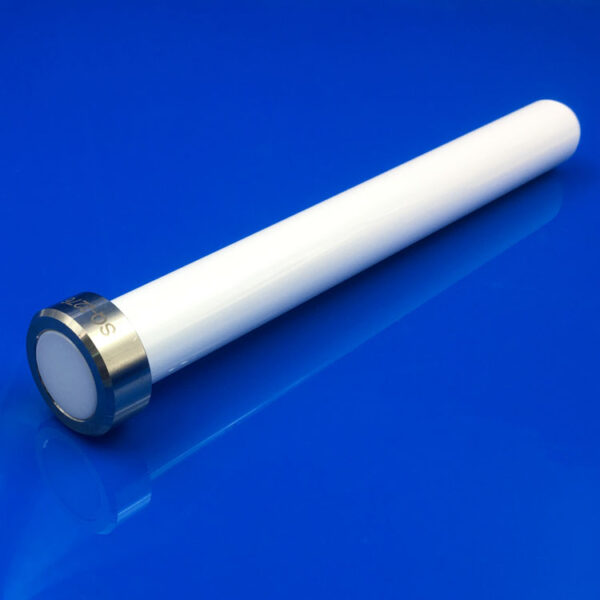

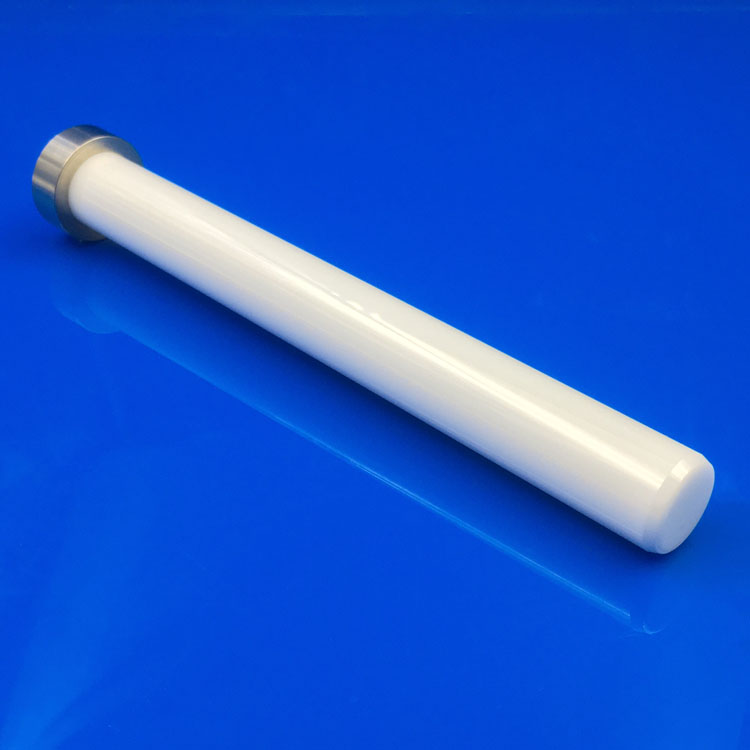

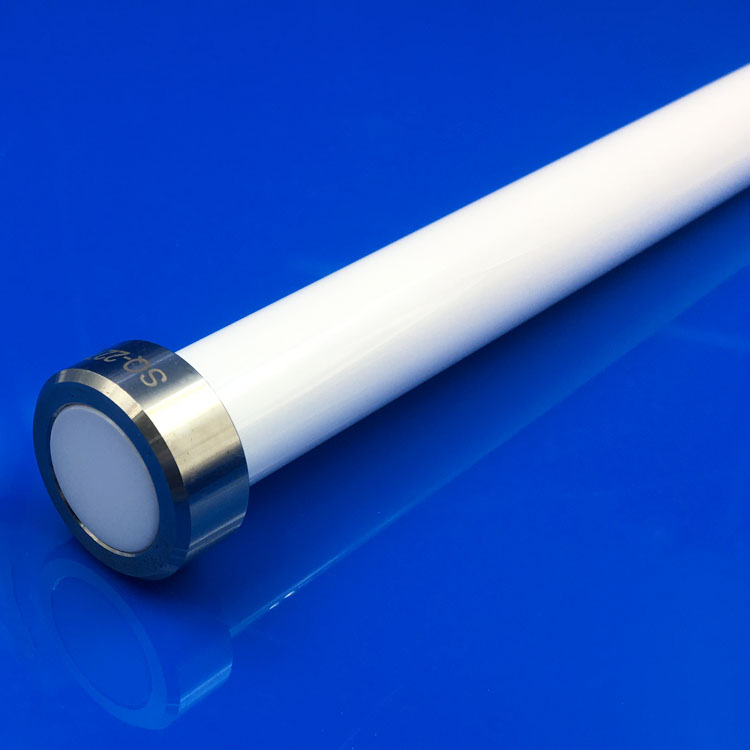

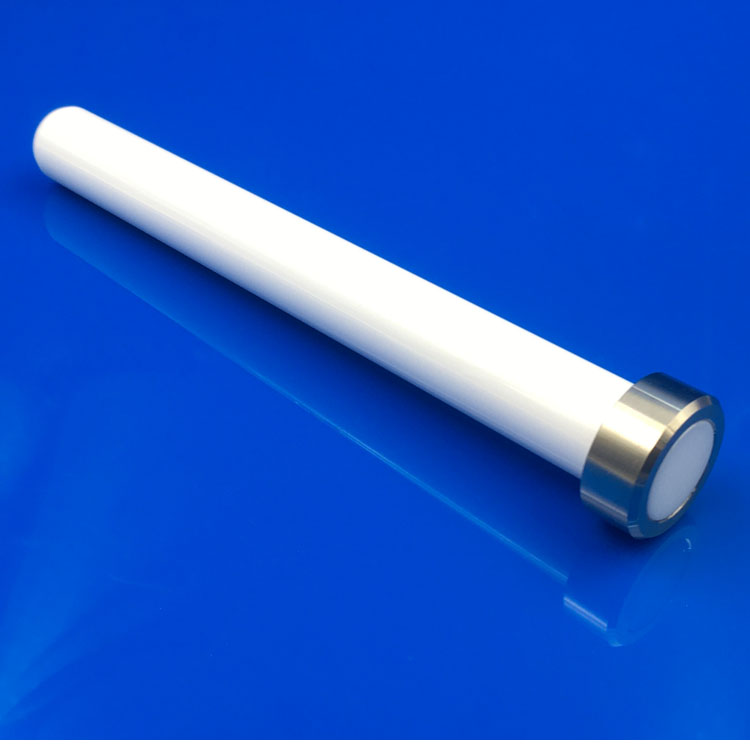

The waterjet intensifier ceramic plunger for the water jet is used on 60k ultra high-pressure intensifier waterjet pumps 50HP, 60HP,100HP, 40KPSI, and 60KPSI. The max pressure it undertakes can be 60 kpsi , voltage of 220v/380v.
We provide zirconia ceramic plunger for below water jet cutters equipment:
FLOW, KMT, OMAX, YONG DA, BOAO, WSI, HUAZHEN, DA DI, JINJIAN.

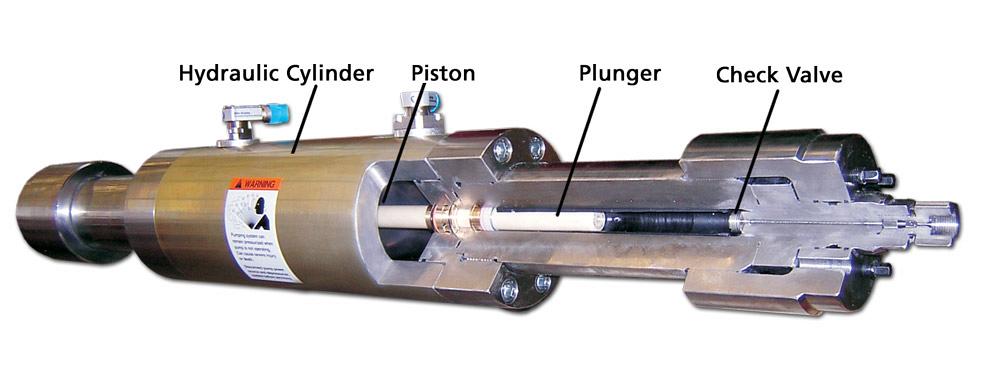

The ceramic connects with the metal cap by heat shrinkage, it is the strongest assembling ceramic to metal, not easy to fall apart. The surface of the zirconia rod is mirror polished, with fine surface roughness, so it is wear-resistant and can work a long time . And zirconia ceramic material with good toughness and fracture strength. Below is the waterjet cutter machine intensifier pump structure with a zirconia ceramic plunger for reference:
Zirconia Ceramic Material Properties
Technical Parameter
Technical Item
Unit
Value
Physical Properties
Major content
%
ZrO2＋HfO2: 94.65%, Y2O3: 5.35%
Density
g/cm3
≥6.0
Water absorption
%
0.00
Mechanical Properties
Hardness
HV
1,400.00
Bending Strength
Kgf/mm2
11.00
Compressive Strength
Kgf/mm2
25.00
Temperature Properties
Thermal Expansion Coefficient (0-1000℃)
(10-6/K)
9.5*10-6
Thermal Shock Resistance
T（℃）
360.00
Thermal Conductivity
W/m.k
3.00
Volume Resistance Rate (20℃)
(Ω·cm)
>10 12
Remark: The value is just for review, different using conditions will have a little difference.
